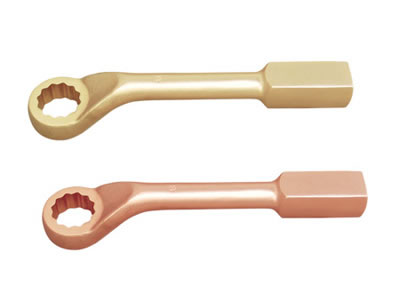

163A American Type Non Sparking Offset Box End Slogging Wrench

As a commonly used tool in America, the 163A slogging wrench has a socket on one end and block on the other. It conforms to the Q/ZBF-163A and is made with either beryllium copper or copper aluminum that has been subjected to a process known as drop forging. Via that process, the wrench achieves high tensile strength, stable mechanical properties, and long service life.

Spark-reduced feature of copper alloy makes the wrench compatible with flammable or explosive atmosphere. Most often struck by a hammer, the spanner creates a motion that moves the hex-head bolts or nuts to release or tighten. The socket is displaced to a large angle to the handle, thus making the handle turn easier without interfering with adjacent fasteners.

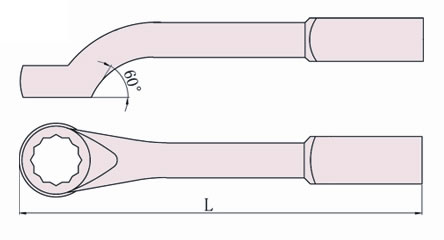

Model S
mm
L
mm
Be-Cu
g
Al-Cu
g
163A-24 24 240 950 860
163A-27 27 270 1150 1035
163A-30 30 280 1480 1340
163A-32 32 290 1690 1530
163A-36 36 300 1900 1720
163A-41 41 320 2110 1910
163A-46 46 340 2750 2485
163A-50 50 350 3170 2870
163A-55 55 360 4125 3730
163A-60 60 375 4335 3920
163A-65 65 390 4440 4010
163A-70 70 400 5400 4875
163A-75 75 420 5810 5255
163A-80 80 440 7295 6600
163A-90 90 480 9740 8800
163A-100 100 515 11300 10200
163A-110 110 550 13400 12100
163A-120 120 585 15500 14000
163A-130 130 620 17700 16000

In addition to the specifications listed above, the product also can be manufactured according to customer specific requirements or technical drawings he or she provides.
