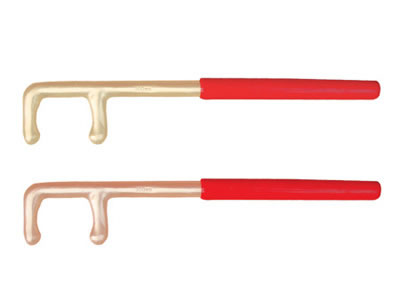

174A Non Sparking Valve Wrench

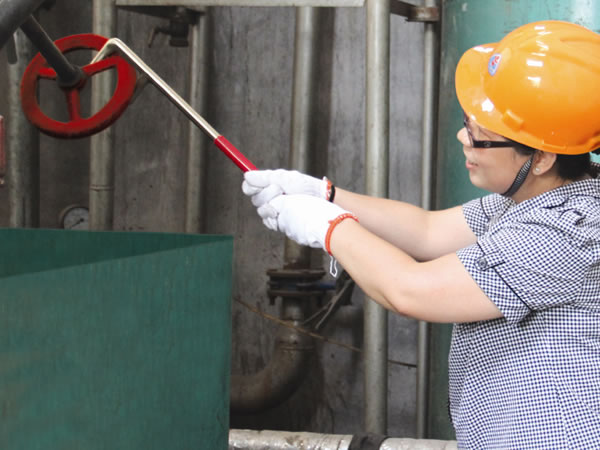

Also known as F-wrench, our 174A non sparking valve wrench is manufactured to meet the QB/T2613.9 standard. Drop-forged structure is also spark-free, which makes the wrench suitable for use in a variety of areas that contain potential flammable or explosive hazards. Its curved head design provides for large contact area between the wrench and the valve, which in turn prevents the head from slipping out of place.

The wrench handle is covered with PVC plastic via a process known as dip coating. Such a design prevents hands slipping off the handle and makes operators exert force easier than before. The wrench has various other desirable features such as great tensile strength, long service life, and stable mechanical performance.

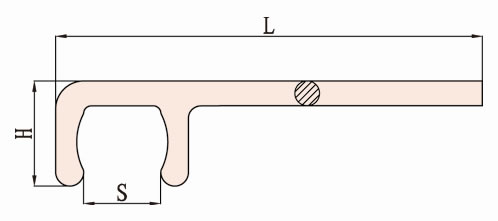

Model S
mm
L
mm
H
mm
Be-Cu
g
Al-Cu
g
174A-30 30 200 46 265 240
174A-35 35 250 52 375 340
174A-40 40 300 54 450 400
174A-45 45 350 60 585 530
174A-50 50 400 68 740 670
174A-55 55 450 74 830 750
174A-60 60 500 80 1200 1100
174A-65 65 550 83 1280 1160
174A-70 70 600 88 1380 1250
174A-75 75 650 93.5 1650 1500
174A-80 80 700 99.5 1870 1700
174A-85 85 750 100 2090 1900
174A-90 90 800 107 2310 2100
174A-95 95 900 112 2980 2700
174A-100 100 1000 117 3330 3010
