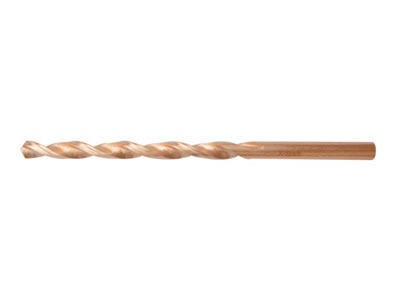

312 Non Sparking Drill Bit

The 312 non sparking drill bit is a cutting tool used to create holes into metal or other materials via its rotation. It is made from beryllium copper that has been first subjected to gear milling or rolling process, followed by quenching prior to the final tempering. This tool is used in a variety of applications where it is fitted into an ordinary drill, lathe, miller or electric hand drill. Its non-sparking nature makes the tool suited for use in combustible or explosive atmosphere.

Our drill bit can be used to drill holes into special materials with a hardness no more that HRC30. Its drop-forged construction is mechanically strong and stable as well as durable and long-lasting.

The product is Q/ZBF-312 Standard compliant.

Model Φ
mm
L
mm
Be-Cu
g
312-1002 6 100 20
312-1004 7 120 30
312-1006 8 140 50
312-1008 9 160 75
312-1010 10 180 100
312-1012 11 200 120
312-1014 12 220 170
312-1016 13 240 220
312-1018 14 260 280
312-1020 15 280 360
312-1022 16 300 440
312-1024 17 300 500
312-1026 18 320 600
312-1028 19 320 700
312-1030 20 330 800

As well as providing the above models, we also offer tailor-made products according to customer specific requirements or based on the technical drawings provided by our customers.
