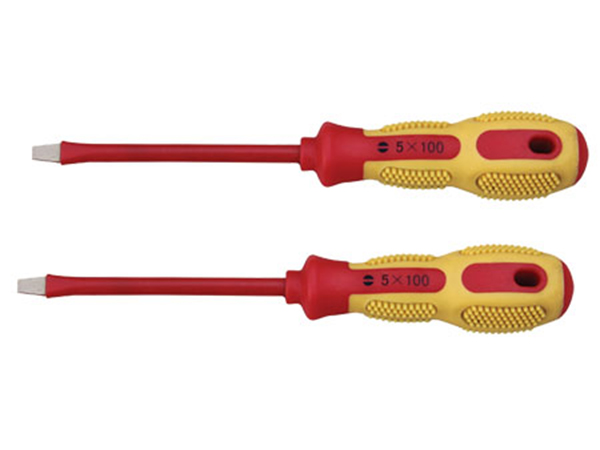

7101 Insulated Slotted Screwdriver
7101 Insulated slotted screwdriver is a hand tool for repair operation on charged or electrostatic workpiece or device under a rated voltage of 1000V AC and 1500V DC. During its operating, this screwdriver has high protection requirements, safe and reliable.
Parameters:| Number | L1（inch） | L1（mm） | L（mm） | H(mm) | B（mm） | Weight(g) |
| 7101-1002 | 2 | 50 | 134 | 0.5 | 3 | 35 |
| 7101-1004 | 2 | 50 | 134 | 1.0 | 4.5 | 42 |
| 7101-1006 | 3 | 75 | 159 | 0.6 | 3 | 34 |
| 7101-1008 | 3 | 75 | 159 | 0.8 | 4 | 44 |
| 7101-1010 | 3 | 75 | 180 | 1.0 | 5 | 68 |
| 7101-1012 | 4 | 100 | 184 | 0.8 | 4 | 44 |
| 7101-1014 | 4 | 100 | 205 | 1.0 | 5 | 73 |
| 7101-1016 | 4 | 100 | 215 | 1.1 | 6 | 84 |
| 7101-1018 | 5 | 125 | 240 | 1.1 | 6 | 100 |
| 7101-1020 | 6 | 150 | 265 | 1.1 | 6 | 110 |
| 7101-1022 | 6 | 150 | 265 | 1.2 | 7 | 125 |
| 7101-1024 | 6 | 150 | 277 | 1.2 | 8 | 140 |
| 7101-1026 | 8 | 200 | 327 | 1.2 | 8 | 165 |
| 7101-1028 | 10 | 250 | 377 | 1.6 | 9 | 185 |
