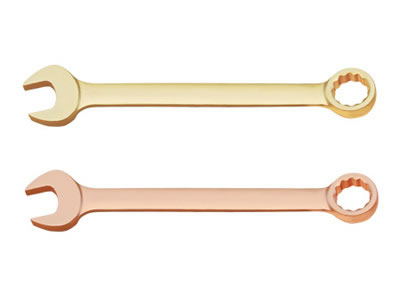

136 Non Sparking Combination Wrench
The 136 non sparking combination wrench meets the German DIN3113 standard. Its flat metallic handle allows logo to be easily printed on it. Die forged structure makes the wrench suitable for use in a variety of flammable or explosive atmospheres.
This double ended tool has one end that is like an open-end wrench and the other end like a ring spanner. Both ends fit over the hex or square heads of nuts or bolts of the same size. Those two faces of jaw are displaced at a 15 degree angle to the metallic handle. This provides for easy of operation. This series of wrench has high tensile strength and stable mechanical properties. It is durable and long-lasting.

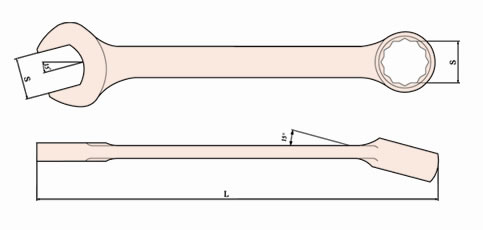

| Model | S mm |
L mm |
Be-Cu g |
Al-Cu g |
| 136-6 | 6 | 105 | 18 | 16 |
| 136-7 | 7 | 120 | 40 | 40 |
| 136-8 | 8 | 120 | 40 | 40 |
| 136-9 | 9 | 135 | 45 | 42 |
| 136-10 | 10 | 135 | 45 | 42 |
| 136-11 | 11 | 150 | 65 | 60 |
| 136-12 | 12 | 145 | 65 | 60 |
| 136-13 | 13 | 175 | 90 | 82 |
| 136-14 | 14 | 175 | 90 | 82 |
| 136-15 | 15 | 195 | 140 | 125 |
| 136-16 | 16 | 195 | 140 | 125 |
| 136-17 | 17 | 195 | 140 | 125 |
| 136-18 | 18 | 215 | 180 | 165 |
| 136-19 | 19 | 215 | 180 | 165 |
| 136-20 | 20 | 215 | 180 | 165 |
| 136-21 | 21 | 245 | 280 | 260 |
| 136-22 | 22 | 245 | 280 | 260 |
| 136-23 | 23 | 265 | 320 | 290 |
| 136-24 | 24 | 265 | 320 | 290 |
| 136-25 | 25 | 265 | 500 | 455 |
| 136-26 | 26 | 290 | 500 | 455 |
| 136-27 | 27 | 290 | 500 | 455 |
| 136-30 | 30 | 320 | 700 | 635 |
| 136-32 | 32 | 340 | 780 | 710 |
| 136-34 | 34 | 360 | 1000 | 910 |
| 136-36 | 36 | 360 | 1000 | 910 |
| 136-38 | 38 | 430 | 1450 | 1310 |
| 136-41 | 41 | 430 | 1420 | 1190 |
| 136-46 | 46 | 480 | 1760 | 1590 |
| 136-50 | 50 | 520 | 2020 | 1830 |
| 136-55 | 55 | 560 | 2000 | 1810 |
| 136-60 | 60 | 595 | 2920 | 2640 |
| 136-65 | 65 | 595 | 3440 | 3110 |
| 136-70 | 70 | 630 | 4130 | 3730 |
| 136-75 | 75 | 630 | 4000 | 3620 |
| 136-80 | 80 | 660 | 5400 | 4880 |
| 136-85 | 85 | 660 | 5320 | 4800 |
| 136-90 | 90 | 720 | 7100 | 6410 |
| 136-95 | 95 | 720 | 7000 | 6250 |
| 136-100 | 100 | 780 | 8950 | 8100 |
| 136-110 | 110 | 780 | 10350 | 9369 |
| 136-120 | 120 | 900 | 12750 | 11560 |
