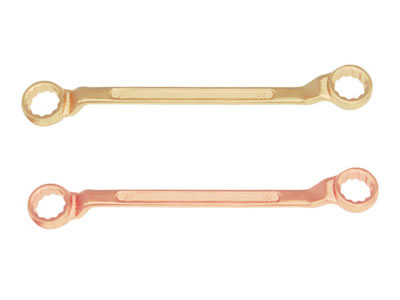

151 Non-Sparking Double Box-End Offset Wrench

The 151 non sparking double box-end offset wrench is made of copper alloy that has been subjected to drop forging process. It has high tensile strength, and is long-lasting while providing stable mechanical performance.

This series of wrench is specially intended for use in tight spaces or deep concaves where straight wrench fails to fit in. It produces less sparks from intense friction with the workpiece than is possible with an ordinary steel wrench. Thus this tool can be used in various potentially flammable or explosive areas to fasten or loosen the hex heads of nuts or bolts.

Model	S1×S2 mm	L mm	Be-Cu g	Al-Cu g
151-0507	5.5×7	115	22	20
151-0607	6×7	115	25	23
151-0709	7×9	130	50	46
151-0810	8×10	130	55	50
151-0911	9×11	140	70	65
151-1011	10×11	140	80	75
151-1012	10×12	140	85	78
151-1213	12×13	160	120	110
151-1214	12×14	160	151	140
151-1417	14×17	220	205	180
151-1618	16×18	220	220	202
151-1719	17×19	250	225	205
151-1722	17×22	250	290	265
151-1819	18×19	250	295	270
151-1922	19×22	280	310	280
151-2123	21×23	285	405	360
151-2126	21×26	320	450	410
151-2224	22×24	310	455	415

Model	S1×S2 mm	L mm	Be-Cu g	Al-Cu g
151-2427	24×27	340	520	475
151-2430	24×30	350	550	501
151-2528	25×28	350	580	530
151-2629	26×29	350	610	550
151-2632	26×32	370	640	570
151-2729	27×29	350	670	605
151-2730	27×30	360	705	645
151-3032	30×32	380	805	736
151-3036	30×36	395	1050	960
151-3234	32×34	400	1080	980
151-3236	32×36	405	1145	1030
151-3436	34×36	420	1165	1065
151-3641	36×41	445	1600	1465
151-4146	41×46	470	2077	1905
151-4650	46×50	490	2530	2315
151-5055	50×55	510	2580	2360
151-5060	50×60	520	3002	2745
151-5560	55×60	530	3203	2905
151-6070	60×70	560	4105	3605
