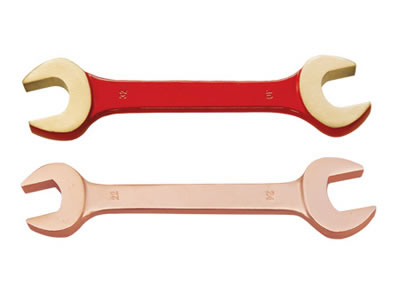

145 Non-Sparking Double Open-End Offset Wrench

The 145 non-sparking double open-end offset wrench is most often used in various flammable or explosive atmospheres, where it is employed to tighten or remove bolts or nuts with square or hex heads. Drop-forged feature not only imparts great tensile strength to the structure, but also helps with the ability to withstand a long time of service wile giving exceptional performance. The product conforms to QB/T 2613.1 standard.

Model Sl×S2
mm
L
mm
Be-Cu
g
Al-Cu
g
145-0507 5.5×7 92 40 35
145-0607 6×7 92 40 35
145-0608 6×8 92 40 35
145-0709 7×9 96 45 40
145-0809 8×9 100 60 55
145-0810 8×10 100 60 55
145-0910 9×10 110 75 70
145-0911 9×11 110 75 70
145-1011 10×11 120 95 87
145-1012 10×12 120 95 87
145-1014 10×14 130 145 133
145-1113 11×13 130 145 133
145-1213 12×13 130 145 133
145-1214 12×14 130 145 133
145-1317 13×17 150 180 165
145-1415 14×15 150 180 165
145-1417 14×17 150 180 165
145-1617 16×17 170 235 215
145-1618 16×18 170 235 215
145-1719 17×19 170 235 215
145-1721 17×21 185 330 302
145-1722 17×22 185 330 302
145-1819 18×19 170 235 215
145-1921 19×21 185 330 302
145-1922 19×22 185 330 302
145-1924 19×24 210 445 430
145-2022 20×22 185 330 302
145-2123 21×23 210 445 430
145-2126 21×26 210 445 430
145-2224 22×24 210 445 430
145-2227 22×27 210 445 430
145-2326 23×26 230 535 490
