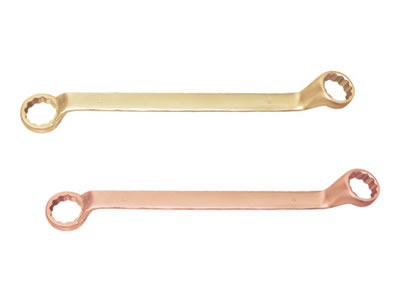

151A Non-Sparking Double Box-End Offset Wrench

The 151A spark-reduced double closed-end offset wrench has two enclosed openings on both ends. It also includes an offset handle to improve access to the nut or bolt where lack of space or clearance prevents the use of a straight wrench. The wrench is drop-forged from copper alloy to impart extra tensile strength to the structure. It is created by adopting German standard DIN838 as basis for its design.

This series of wrench is primarily used in a variety of areas where potential fire or explosion hazard might be experienced. Durable and long-lasting, the product gives stable mechanical functioning.

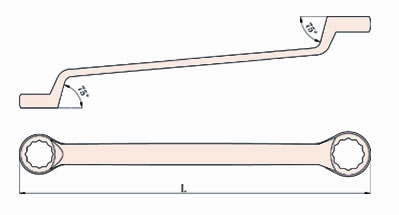

Model S1×S2
mm
L
mm
Be-Cu
g
Al-Cu
g
151A-1719 17×19 280 180 160
151A-1922 19×22 300 210 190
151A-1924 19×24 320 320 290
151A-2123 21×23 320 370 335
151A-2224 22×24 330 420 380
151A-2427 24×27 340 480 430
151A-2730 27×30 350 530 480
151A-3032 30×32 370 690 620
151A-3236 32×36 430 1000 910
151A-3641 36×41 470 1270 1150
151A-4146 41×46 500 1580 1430
151A-4650 46×50 525 1900 1720
151A-5055 50×55 550 2850 2580
