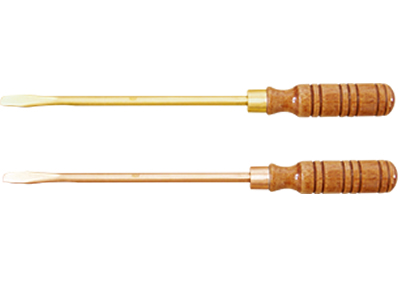

265 Non Sparking Insulated Slotted Screwdriver

The 265 non sparking insulated slotted screwdriver is specifically designed for use in live-line work. It is employed to tighten or loosen slotted screws that have been energized, and is able to withstand a maximum voltage of 1000v.

This tool is one of the most common types of screwdrivers. It features a flat headed tip set at the end of the shaft, opposite the plastic handle. The slotted screwdriver allows screws to be twisted tightly into place. It usually comes with a flat wedge-shaped tip to fit into a slot or notch in the head of a screw. One primary advantage of this product is its non-sparking feature, which makes the tool suited for use in hazardous areas as it will not produce sparks resulting from impact, collision, friction, or strike that might lead to unwanted damage.

Features
1. Cold rolled construction
2. Suitable for live-line working applications.

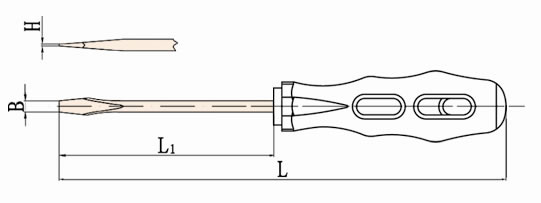

Model L1
inch
L1
mm
L
mm
H
mm
B
mm
Be-Cu
g
Al-Cu
g
265-1002 2 50 134 0.4 3 35 33
265-1004 2 50 134 0.5 4.5 43 40
265-1006 3 75 159 0.4 3 35 32
265-1008 3 75 159 0.5 4 45 42
265-1010 3 75 180 0.6 5 70 65
265-1012 4 100 184 0.5 4 45 42
265-1014 4 100 205 0.6 5 75 70
265-1016 4 100 215 0.8 6 85 80
265-1018 5 125 240 0.8 6 100 95
265-1020 6 150 265 0.8 6 110 105
265-1022 6 150 265 1 7 125 120
265-1024 6 150 277 1.2 8 140 135
265-1026 8 200 327 1.2 8 165 155
265-1028 10 250 377 1.4 9 185 175
265-1030 10 250 377 2 11 260 245
265-1032 12 300 427 1.8 10 245 230
265-1034 12 300 427 2 11 290 275
265-1036 14 350 477 2 11 320 300
265-1038 16 400 550 2.4 12 450 430

As well as providing the above models, we also can tailor-make the product according to customer-specific requirements or based on the technical drawings customers provide us with.
