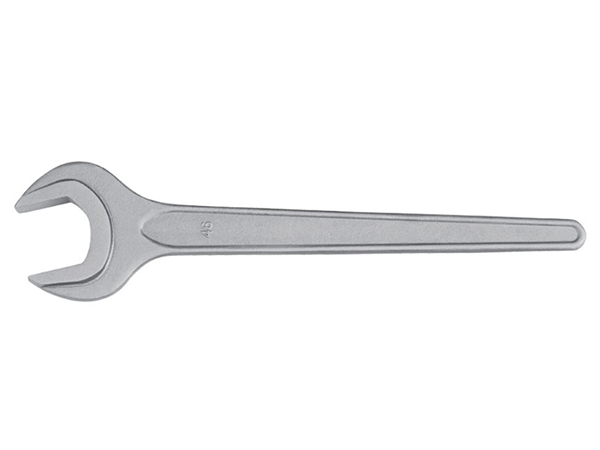

8103 Stainless Steel Single Open End Wrench

Materials:
1. Austenitic stainless steel: grade 304
This stainless steel, non-magnetic or weakly magnetic, is characterized by high tenacity and ductility, anti-corrosion and thermostability. But the strength can not be strengthened by phase transformation.
Application: stainless steel 304 is used in household goods, medical appliance, ship accessories, auto parts, building materials, chemical and food industries.

304QF stainless steel tools technical parameters:
Chemical composition: %
C Si Mn Cr Ni S P N
≤0.08 ≤0.85 ≤1.8 18.0-20 8.0-10.5 ≤0.03 ≤0.045 ≤0.2

Physical property
Tensile strength: σb(MPa)≥520
Offset yield strength:σ0.2(MPa)≥205
Elongation:δ5(%)≥40
Contraction percentage of area: z(%)=60
Density (20℃, g/cm3): 7.93
Hardness: HRC15-25
Melting point (℃): 1398~1454
Specific heat (0~100℃, KJ·kg-1K-1): 0.50
Heat conductivity (W·m-1·K-1): (100℃) 16.3, (500℃) 21.5
Linear expansion coefficient (10-6·K-1): (0~100℃) 17.2; (0~500℃) 18.4
Resistivity (20℃, 10-6Ω·m): 0.73
Magnetism: ≤5nT within 10cm in the magnetic field

2. Martensitic stainless steel (cutting tools stainless steel): representative grade: 420
The mechanical property of martensitic stainless steel is adjustable by heat treatment. Generally speaking, it is a type of hardenable stainless steel. It is hardened after quenching. Different tempering temperatures give different combinations of hardness and toughness. This stainless steel is widely used in such industries where the requirements of corrosion resistance is not very high, plus the cutting tools and machine elements have high requirements on strength.

420 stainless steel tools parameters:
Chemical composition: %
C Si Mn Cr Ni S P
0.16-0.25 ≤1.00 ≤1.00 12.0-14.0 ≤0.75 ≤0.03 ≤0.04

Physical property
Tensile strength: σb(MPa)≥365
Offset yield strength:σ0.2(MPa)≥440
Elongation:δ5(%)≥20
Contraction percentage of area: z(%)=50
Density (20℃, g/cm3): 7.75
Hardness: HRC35-45
Melting point (℃): 1427
Specific heat (25℃, J·kg-1K-1): 460
Heat conductivity (W·m-1·K-1): 24.9
Linear expansion coefficient (mm/℃): (at20-100℃)

Parameters:
Number Size (mm) L(MM) Weight(g)
8103-8 8 95 40
8103-10 10 105 50
8103-12 12 125 65
8103-14 14 140 95
8103-17 17 160 105
8103-19 19 170 130
8103-22 22 195 170
8103-24 24 220 190
8103-27 27 240 285
8103-30 30 260 320
8103-32 32 275 400
8103-34 34 290 455
8103-36 36 310 530
8103-41 41 345 615
8103-46 46 375 950
