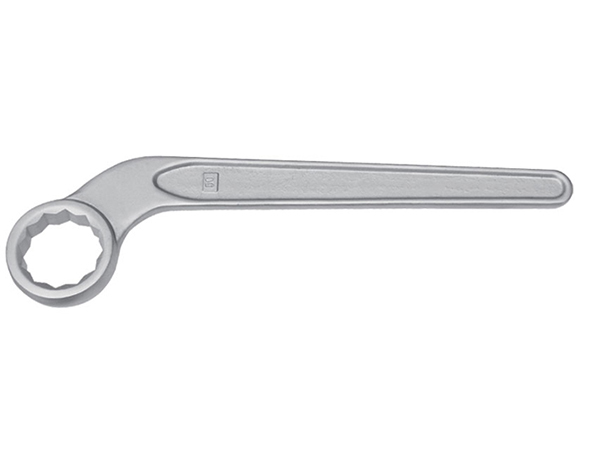

8110 Stainless Steel Wrench, Single Bent Box

Optional Materials:
1. Austenitic stainless steel: typical grade 304
This material is non-magnetic or weakly magnetic, and it has toughness and ductility, with resistance to corrosion and high temperature. But its strength cannot be strengthened by phase transformation.
Application: 304 is largely used in household goods, medical appliance, ship accessories, auto parts, building materials, chemical and food industries.

304QF stainless steel tools technical parameters:
Chemical composition: %
C Si Mn Cr Ni S P N
≤0.08 ≤0.85 ≤1.8 18.0-20 8.0-10.5 ≤0.03 ≤0.045 ≤0.2

Physical property
Tensile strength: σb(MPa)≥520
Offset yield strength:σ0.2(MPa)≥205
Elongation:δ5(%)≥40
Contraction percentage of area: z(%)=60
Density (20℃, g/cm3): 7.93
Hardness: HRC15-25
Melting point (℃): 1398~1454
Specific heat (0~100℃, KJ·kg-1K-1): 0.50
Heat conductivity (W·m-1·K-1): (100℃) 16.3, (500℃) 21.5
Linear expansion coefficient (10-6·K-1): (0~100℃) 17.2; (0~500℃) 18.4
Resistivity (20℃, 10-6Ω·m): 0.73
Magnetism: ≤5nT within 10cm in the magnetic field

2. Martensitic stainless steel (cutting tools stainless steel): representative grade: 420
Martensitic stainless steel can be adjusted in mechanical properties through heat treatment. Popularly speaking, it belongs to hardenable stainless steel. After quenching, its hardness is higher. And this stainless steel attains different combinations of strength and hardness with different tempering temperatures. It is used in conditions requiring no high corrosion resistance and where the cutting tools and machine elements require highly on strength.

420 stainless steel tools technical parameters:
Chemical composition: %
C Si Mn Cr Ni S P
0.16-0.25 ≤1.00 ≤1.00 12.0-14.0 ≤0.75 ≤0.03 ≤0.04

Physical property
Tensile strength: σb(MPa)≥365
Offset yield strength:σ0.2(MPa)≥440
Elongation:δ5(%)≥20
Contraction percentage of area: z(%)=50
Density (20℃, g/cm3): 7.75
Hardness: HRC35-45
Melting point (℃): 1427
Specific heat (25℃, J·kg-1K-1): 460
Heat conductivity (W·m-1·K-1): 24.9
Linear expansion coefficient (mm/℃): (at20-100℃)

Parameters:
Number Size (mm) L(MM) Weight(g)
8110-10 10 119 45
8110-12 12 151 50
8110-14 14 151 60
8110-16 16 174 90
8110-17 17 174 90
8110-19 19 207 195
8110-22 22 207 180
8110-24 24 250 300
8110-27 27 250 270
8110-30 30 295 420
8110-32 32 295 420
8110-34 34 307 600
8110-36 36 307 600
8110-38 38 340 830
8110-41 41 340 810
8110-46 46 370 930
8110-50 50 400 1300
8110-55 55 430 1650
8110-60 60 450 2100
8110-65 65 470 2360
