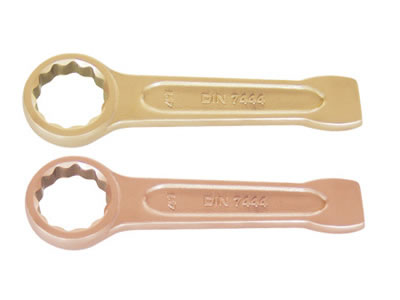

160 Non Sparking Box End Striking Wrench

Designed in accordance with Germany standard DIN7444, the 160 striking wrench is made of either aluminum bronze or beryllium copper that has undergone drop forging process. Its spark proof feature makes the wrench suitable for use in flammable or explosive atmosphere. Striking wrench gets its name from the fact that it has to be hit by a hammer to provide high amount of torque required to tighten or loosen large-sized nuts or bolts with hex heads. Rugged and long lasting, the tool gives stable mechanical performance.

Model S
mm
L
mm
Be-Cu
g
Al-Cu
g
160-17 17 145 210 190
160-19 19 145 200 180
160-22 22 155 245 220
160-24 24 165 235 210
160-27 27 175 350 315
160-30 30 185 475 430
160-32 32 185 465 420
160-36 36 205 580 520
160-41 41 225 755 680
160-46 46 235 990 890
160-50 50 250 1145 1030
160-55 55 265 1440 1300
160-60 60 274 1620 1450
160-65 65 298 1995 1800
160-70 70 320 2435 2200
160-75 75 326 3010 2720
160-80 80 350 3600 3250
160-85 85 355 4330 3915
160-90 90 380 5500 4970
160-95 95 390 5450 4920
160-100 100 410 7080 6400
160-105 105 420 7000 6320
160-110 110 450 9130 8250
160-120 120 480 11000 9930
160-130 130 510 12610 11400
160-140 140 520 13000 11750
160-150 150 565 14500 13100
