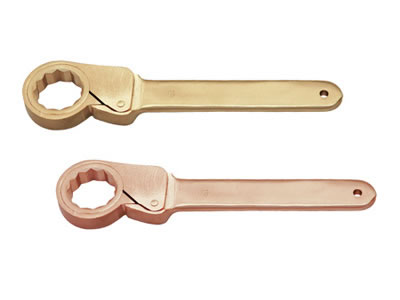

183A European Style Ratchet Wrench

The 183A European style ratchet wrench is a hand tool used to release or tighten bolts and nuts. It has been drop-forged from copper alloy prior to subjecting the construction to NC machining process.

Due to unique physical characteristics of copper alloy, the wrench is able to disperse quickly the heat produced from the intense friction or impact between its gripping face and clamped machine parts. Relative to other non-ferrous metals, the copper is softer and thus unlikely to shed tiny metal particles that would probably further lead to sparking.

The ratchet wrench also features a flexible handle that allows the wrench to operate at any awkward angle. Spark-free feature makes the tool suitable for use in various flammable or explosive atmospheres. The gear-pawl assembly involved in the ratcheting mechanism can be replaced easily and with little effort. The whole workpiece give high tensile strength, long service life and stable mechanical performance.

Features
1. Q/ZBF-183A certified
2. Ratcheting mechanism enables Reversing the direction of operation in situ without detaching the sockets.

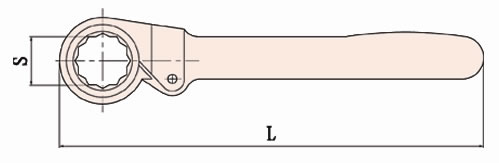

Model S
mm
L
mm
Be-Cu
g
Al-Cu
g
183A-9 9 150 125 110
183A-11 11 150 125 110
183A-13 13 155 160 140
183A-14 14 155 160 140
183A-17 17 200 260 230
183A-19 19 200 260 230
183A-22 22 220 340 300
183A-24 24 220 340 300
183A-27 27 245 560 500
183A-30 30 280 840 750
183A-32 32 280 840 750
183A-36 36 290 1180 1050
183A-41 41 295 1230 1100
183A-46 46 360 2060 1850
183A-50 50 360 2230 2000
183A-55 55 440 2900 2600
183A-60 60 440 2900 2600

In addition to the listed specifications, we also offer custom-made wrenches that meet client specific requirements as well as manufacture the products based on the technical drawing customers offer us.
